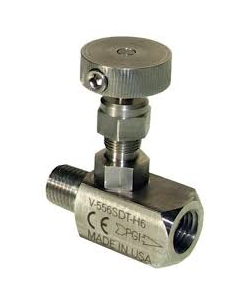

Parker Mini Sample Cylinder Valves

Parker PGI’s Mini Sample Cylinder Valves are designed for use with sample cylinders and are available in a variety of configurations, sizes, and styles. Parker PGI’s Sample Cylinder Valve Series are compact needle valves designed specifically for use with sample cylinders. These valves utilize o-ring stem seals or PTFE stem packing to insure a positive seal.

Parker Mini Sample Cylinder Valves Descriptions

• .136” orifice
• .22 Max Cv rating for straight valves or .27 Cv for angle valves
• Body available in 316SS or Carbon Steel
• PTFE Packed or FKM O-Ring stem seal materials available
• Integral metal seat available
• Optional round handle

Parker Mini Sample Cylinder Valves Markets

• Oil and Gas
• Chemical
• Petrochemical
• Power

Parker Mini Sample Cylinder Valves Features/Benefits

• .136” orifice
• .22 Max Cv rating for straight valves or .27 Cv for angle valves
• Body available in 316SS or Carbon Steel
• PTFE Packed or FKM O-Ring stem seal materials available
• Integral metal seat available
• Optional round handle

Parker Mini Sample Cylinder Valves Specifications

• Valve Option    1/4" M x F Straight Valve
• Valve Materials    Carbon Steel
• Stem Seal Material    FKM O-Ring
• Handle    Carbon Steel Round Handle
• Seat Material    Acetal Resin (STD)

Contact us at (855) 737-4714 to learn more, or fill out our online form.
