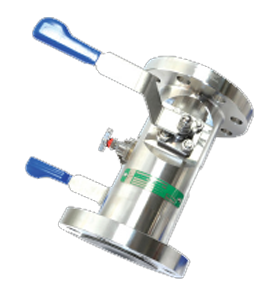

Parker Double Block and Bleed Monoflange Manifolds
The Monoflange manifold range is designed to replace conventional, multiple-valve installations that currently interface with pressure measuring systems. By combining primary and secondary valves into one compact manifold, the number of leak paths is significantly reduced and the system mass is lowered, offsetting the stresses from loading and vibration. This not only improves installation and operational safety factors, it lowers installation cost.
Parker Double Block and Bleed Monoflange Manifolds Features and Benefits
- Up to 60% reduction in leak paths through integral valve mounting for improved safety
- Less susceptibility to vibration
- Installation and component costs reduced by up to 80%
- Weight reduced by up to 85%
- One-piece, grain flow controlled, forged body for strength
- Incorporates standard “H” Series needle valve technology
- State-of-the-art outside screw and yoke (OS&Y) design
- Meets ISO 15848, Class A standard for fugitive emission requirements
- ANSI B16.5, 150 to 2,500 flange class
Parker Double Block and Bleed Monoflange Manifolds Applications
- Electrohydraulic control (EHC)
- Generators
- Welded piping systems
- Process lines/high flow applications
- High pressure/temperature steam lines
- Hydraulic control circuits and lube oil circuits
Download Parker Instrument Valve Datasheet
Contact us at (855) 737-4714 to learn more, or fill out our online form.
