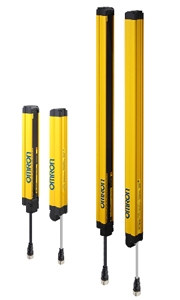

The new F3SG-4RR global light curtains are a line extension that also includes productivity improvements with easy to mount brackets, Smartclick cables and more indicators to expedite installation and reduce maintenance downtime.
Main Advantages / Benefits
- Rugged housing: IP67G rating (cutting-oil resistant)
- Unique construction for leak-proof seal: The optical surface is completely sealed with special rubber allowing the metal body extrusion to compress the rubber, resulting in a leak proof seal.
- Reduces replacement costs: Conventional light curtains exposed to cutting oil often fail within a year, requiring frequent replacement and line shutdown. F3SG-RR pays for itself with continuous machine availability.
- Smartclick connectivity: Connect just by turning the waterproof M12 connector 1/8 turn, reducing time needed for wiring and ensuring reliable connections
- Faster response times: Allows mounting of the light curtain closer to the hazard
- Cascaded designs possible: 3 segments up to 255 beams
- Resolutions to match application: Choose 14 mm or 25 mm beam spacing
- QR Code troubleshooting: Multilingual troubleshooting websites for global operators, improving maintenance efficiencies
Target Markets / Applications

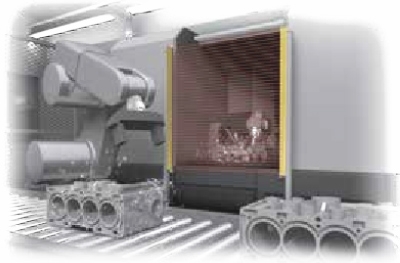

Automotive Machine Tool / Assembly Robot Cells and Transfer LinesThese applications require protective coverage and continuous operation with no false detections. Machine tools that emit cutting oil spray include CNC machines, Horizontal Milling machines, Vertical Milling machines, CNC Lathes and Grinders, to name a few. The new F3SG-4RR with Configuration Tool SD Manager 2 (a Free download) allows easy setup when traditional muting and blanking requirements are needed for automotive and machine tool applications.
