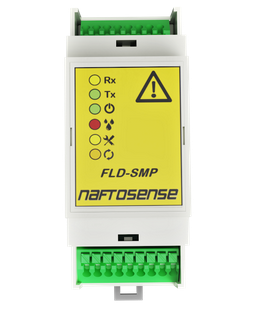

Naftosense FLD-SMP-MB Control Module for Panel Mount

Naftosense FLD-SMP-MB Control Module for Panel Mount
FLD-SMP-MB is a high-performance controlling module designed for mounting in your existing or new enclosure. It was specially designed to interface with Naftosense ERBUS proprietary communications and low voltage power to related monitoring modules. FLD-SMP-MB offers convenient DIN-rail mounting in any approved enclosure.

Each individual FLD-SMP-MB can be connected to 50 monitoring modules. Each monitoring module can be connected to up to 8 individual sensors not exceeding 82 ft (25 m) each. Because the ERBUS provides both power and communications you can connect monitoring modules to the proprietary bus eliminating the need of additional infrastructure. The maximum distance covered with wired layout(sensor and jumper) is more than 2 miles!

With optional loopback wiring increases the system reliability in case of individual cable breaks and shorts. High-level interfacing to DCS/SCADA is implemented through the RS-485 serial output with Modbus RTU, or through two dry contacts - one SPDT relay for leak alarms, and a second SPDT relay for trouble/power failure.

FLD-SMP-MB must use a Zenner Barrier and mounted in an approved enclosure for classified locations. Designed to be used with all Naftosense sensing cables and point sensors. Compatible monitoring modules are FLD-MXM and FLD-FBS.



Naftosense FLD-SMP-MB Control Module for Panel Mount Features

  • Extremely long range of leak detection circuit monitoring
  • Easy T-branching – no special devices/components needed
  • Dynamic tracking of sensor contamination
  • Adjustable alarm threshold
  • Very wide operating temperatures range
  • Able to interface with acquisition modules for various types of liquids and vapors as water, acids, bases, hydrocarbons, alcohols, ketones, etc.
  • 10-year warranty



Naftosense FLD-SMP-MB Control Module for Panel Mount Applications

  • Pipe sections in remote facilities
  • Detection of viscous hydrocarbons in substations, pumping stations, etc.
  • Detection of leaking fuel from airport hydrant systems, military, and custody transfer installations in harsh outdoor, demanding environmental conditions
  • Leak detection in data centers and commercial buildings


Naftosense FLD-SMP-MB Control Module for Panel Mount Approvals

Approved for use in:
  • In the US: Intrinsically safe - Class I, Division 1, Groups A, B, C and D, Class I, Zone 0, AEx ia IIC
  • Atex: Intrinsically safe – II 1 G, Ex ia IIC Gb T4
  • IECEx: Intrinsically safe – Ex ia IIC Gb T4
  • Tested by FM Approvals for compliance as per FM Class 3610


Download Naftosense FLD-SMP-MB Control Module for Panel Mount Datasheet
