Pinch Valves

Pinch Valves

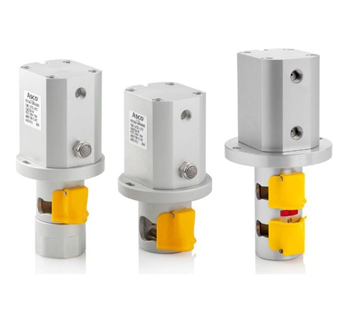

The series 273 are 2-Way normally closed and normally open pressure-operated pinch valves designed for use with high-purity liquids in biotech applications. The pneumatic pinch valve is also available as a 3-way normally closed and normally open valve, designed for chromatography applications. Hermetic separation of control mechanism and the fluid within the tubing prevents contamination, assuring maximum purity of liquids. Available in a large range of body sizes to accommodate a wide variety of tubing sizes. Typical applications include single-use bioreactors, Tangential Flow Filtration (TFF), and Chromatography skids.



Valve Type:  2-Way Normally Open (NO) and Normally Closed (NC) | 3-Way Dual
Material of construction:  2-Way: Anodized Aluminum and Stainless Steel | 3-Way: Anodized Aluminum
Tube Range (OD):  2-Way: 1/4", 3/8", 1/2", 3/4", 1" | 3-Way: 1/2"
Tube Material:  Silicone, cflex374, 082 and Tygon
Tube Hardness:  55 - 80 Shore A (Gamma Radiated)
Tube Media Pressure: Up to 90 PSI (up to 6 BAR), depending on size and tubing material
Air operating / Piloting pressure:  70 PSI – 145 PSI (4.8 BAR – 10 BAR)
Ambient Temperature:  32°F to 104°F (0°C to + 40°C)
T-Groove for switch contact:  Feedback on valve position status (Ex. ASCO Series 494)
Media:  Inert Gases or Liquids


Download ASCO Pinch Valves Series 273/373 Datasheet

Download ASCO Pinch Valves Series 273/373 I & M Instructions
