Ultra-Mini ELECYLINDER® from IAI

Ultra-Mini ELECYLINDER® from IAI
Believe it: A built-in controller at this size resolves all kinds of small air cylinder problems! Select from three types according to the application: Slider, Rod, Table. Speed can be set with numbers from 1% (low speed) to 100% (high speed), enabling the same motion regardless of the operator.

Design is easy with all the necessary components already assembled. Modular structure makes replacement easy.


Ultra-Mini ELECYLINDER® Features

  • ELECYLINDER speed can be set easily at any value needed, from low speed to high-speed operation
  • Speed can be set with numbers from 1% (low speed) to 100% (high speed), enabling the same motion regardless of the operator
  • The ELECYLINDER is electric and thus airless. What's more, it is an all-in-one machine with controller and guide built-in
  • Design is easy with all the necessary components already assembled
  • The Ultra-Mini ELECYLINDER has a life of five million cycles. What's more, maintenance is simple
  • Modular structure makes replacement easy

Ultra-Mini ELECYLINDER® Functions

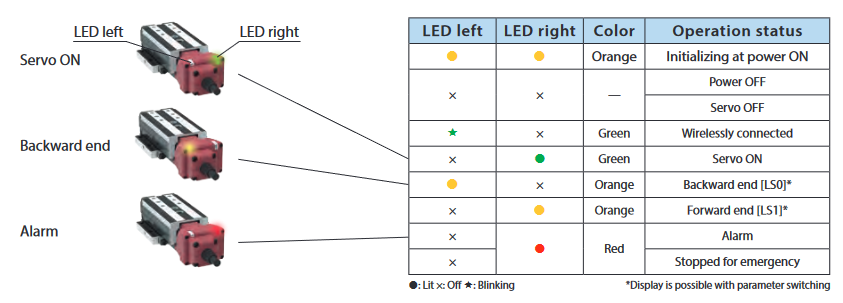

  • Status shown by body LED: LEDs on the body clarify the operation status. With forward end/backward end display added, the status is clear at a glance.
Ultra-Mini ELECYLINDER® from IAI functions

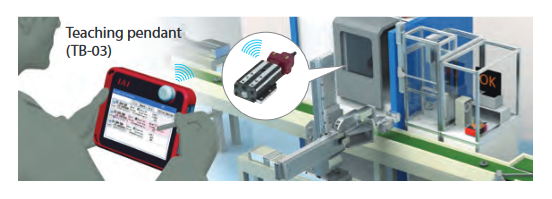

  • Simple operation with wireless connection: The teaching pendant (TB-03) can be connected wirelessly to an ELECYLINDER within a 5m radius. This enables status confirmation, position/speed setting, test runs and so on.
Ultra-Mini ELECYLINDER® from IAI functions

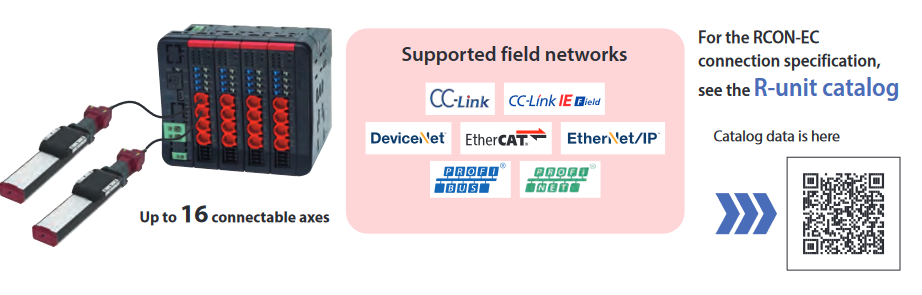

  • Multi-axis control and network connection with RCON-EC connection specification:  Use of the ELECYLINDER dedicated drive unit REC enables connection with up to 16 axes, reducing wiring and saving control panel space.

Ultra-Mini ELECYLINDER® from IAI functions


Ultra-Mini ELECYLINDER® Video




Download IAI Ultra-Mini ELECYLINDER® Brochure

Talk to one of our experts today at (855) 737-4716, or fill out our online form to learn more.
