IAI released their Compact ELECYLINDER® EC-CRP/CGD/CTC. This slim electric actuator (59.5mm in length) is equipped with a compact controller circuit board that fits into the body. The design features a powerful 24VAC hollow servo motor. Position detection uses a hollow magnetic encoder with excellent environmental resistance. The wireless Teaching Controller makes connection easy and operation simple. This compact unit will save space while handling various kinds of motion requirements.

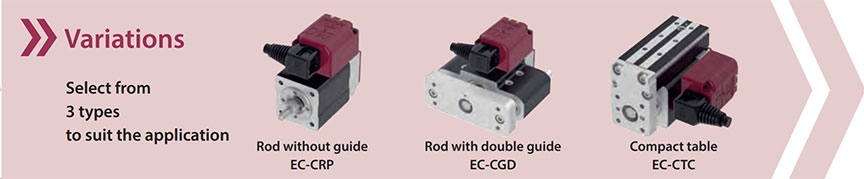

Select From 3 Types of Compact ELECYLINDER® to Suit Your Application
- EC-CRP (rod without guide)
- EC-CGD (rod with double guide)
- EC-CTC (compact table
Automatic Servo OFF Function
The automatic servo OFF function can be set with the PC teaching software (IA-OS) or teaching pendant (TB-02/03). When the automatic servo OFF function is set, the servo will turn OFF automatically after positioning complete, after stopping, or after a certain amount of time (lag time). The servo automatically turns ON when the next movement command is input, executing positioning operation. Power consumption can be reduced, because there is no holding current when stopped.

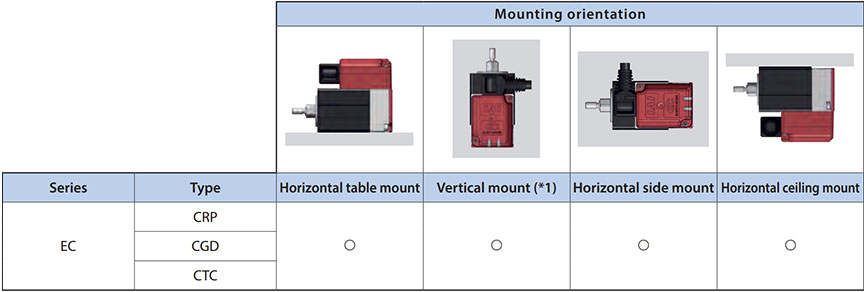

Actuator Mounting Orientation
- Horizontal table mount
- Vertical mount
- Horizontal side mount
- Horizontal ceiling mount
Download IAI Compact ELECYLINDER® EC-CRP/CGD/CTC Slim Electric Actuator Brochure Talk to one of our experts today at
(855) 737-4716 or fill out our
online form to learn more.
